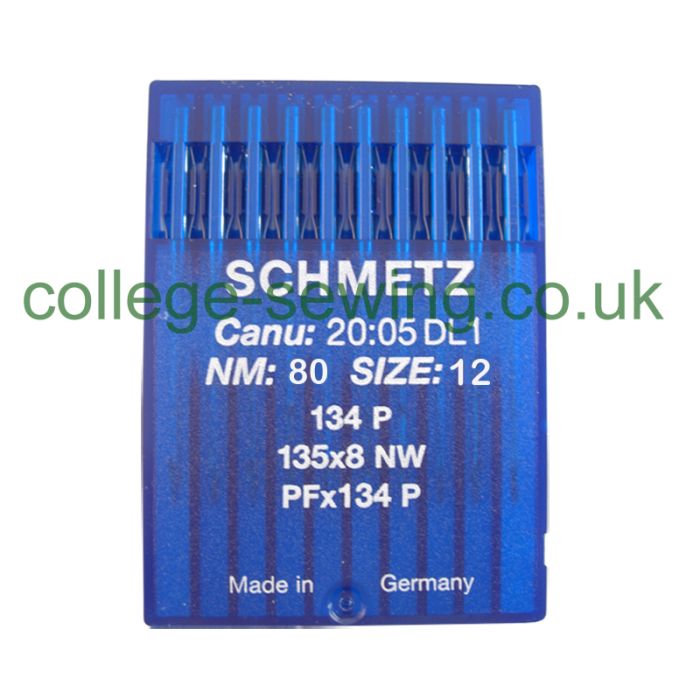

134P SIZE 80 PACK OF 10 NEEDLES SCHMETZ
Part No
134PX80
Schmetz 20:05DL1 - 134 P, 135X8 NW, PFX134 P - NM 80 / Size 12 - P (Narrow wedge point) Packet of 10 Needles.
£4.48
Ex. VAT
Only 15 Left In Stock!
Description / 134P SIZE 80 PACK OF 10 NEEDLES SCHMETZ
Schmetz 20:05DL1 - 134 P, 135X8 NW, PFX134 P - NM 80 / Size 12 - P (Narrow wedge point) Packet of 10 Needles.
P (Narrow wedge point)
By using this cutting point, you create a lenticular incision that is made at right angles to the seam direction. The result is a seam with high strength. Needles with the narrow wedge point "PCL" have a left twist groove below the eye for hooks positioned to the right of the needle. Accordingly, "PCR" has a right twist groove below the eye for hooks positioned to the left of the needle. It is particularly useful as the lefthand needle on the twin needle lockstitch machine.

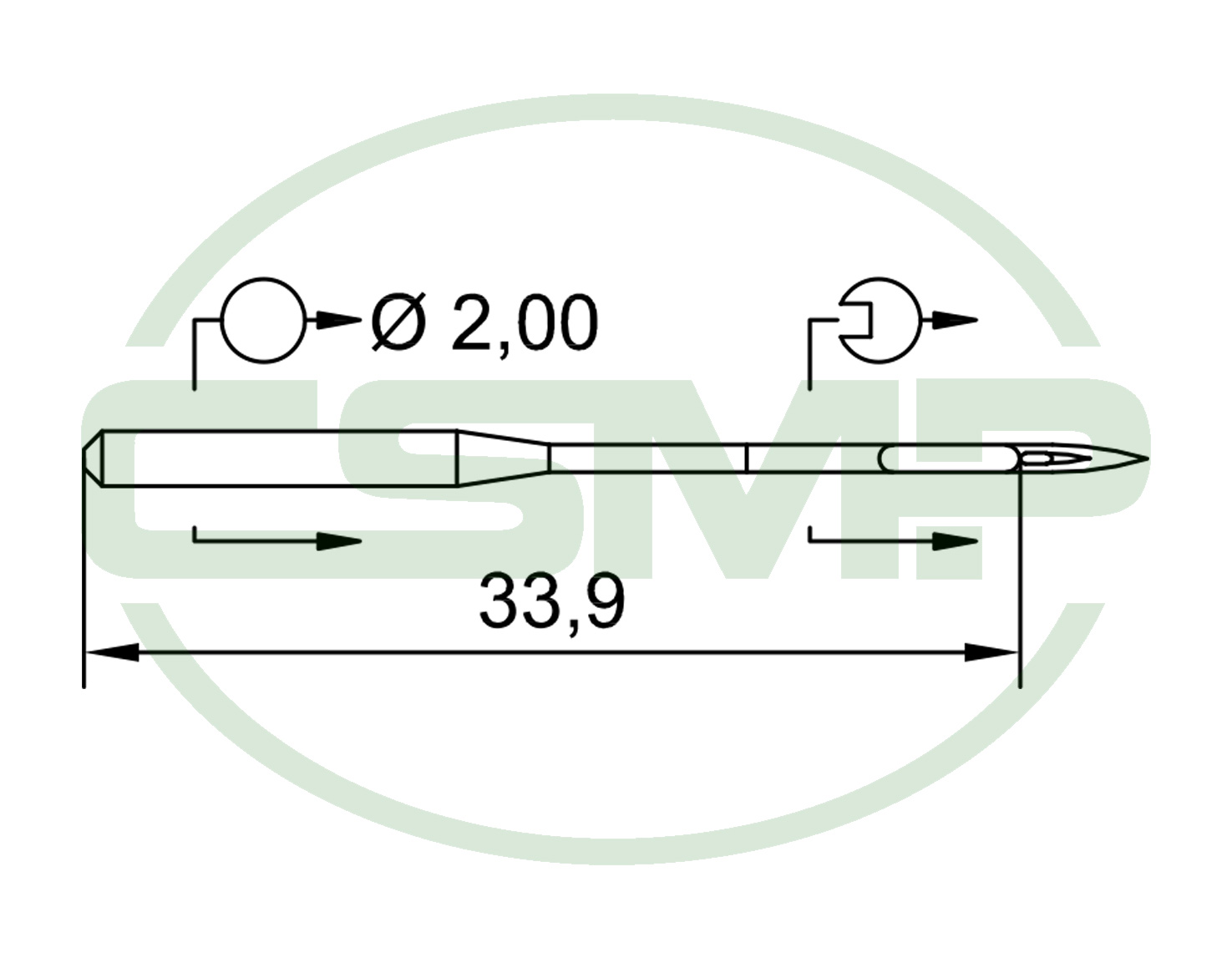

Needle Specification
| Customary Needle Designations | 134 P, 135X8 NW, PFX134 P |
|---|---|
| CANU | 20:05DL1 |
| NM / Size | NM: 80 / Size: 12 |
| Point Style | P (Narrow wedge point) |
| Type of Coating | Chrome |
| Shank-ø | 2 mm |
| Overall Length | 38.5 mm |
| Length to Eye | 33.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 134PX80 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 80 / Size 12 |
