134 PCR SIZE 80 PACK OF 10 NEEDLES SCHMETZ
Part No
134PCRX80
Schmetz 20:05WL1 - 134 PCR, PFX134 PCR - NM 80 / Size 12 - P CR (Narrow wedge point with groove on right side) Packet of 10 Needles.
£4.48
Ex. VAT
Only 6 Left In Stock!
Description / 134 PCR SIZE 80 PACK OF 10 NEEDLES SCHMETZ
Schmetz 20:05WL1 - 134 PCR, PFX134 PCR - NM 80 / Size 12 - P CR (Narrow wedge point with groove on right side) Packet of 10 Needles.
P CR (Narrow wedge point with groove on right side)
By using this cutting point, you create a lenticular incision that is made at right angles to the seam direction. The result is a seam with high strength. Needles with the narrow wedge point "PCL" have a left twist groove below the eye for hooks positioned to the right of the needle. Accordingly, "PCR" has a right twist groove below the eye for hooks positioned to the left of the needle. It is particularly useful as the lefthand needle on the twin needle lockstitch machine.
Needle Specification
| Customary Needle Designations | 134 PCR, PFX134 PCR |
|---|---|
| CANU | 20:05WL1 |
| NM / Size | NM: 80 / Size: 12 |
| Point Style | P CR (Narrow wedge point with groove on right side) |
| Type of Coating | Chrome |

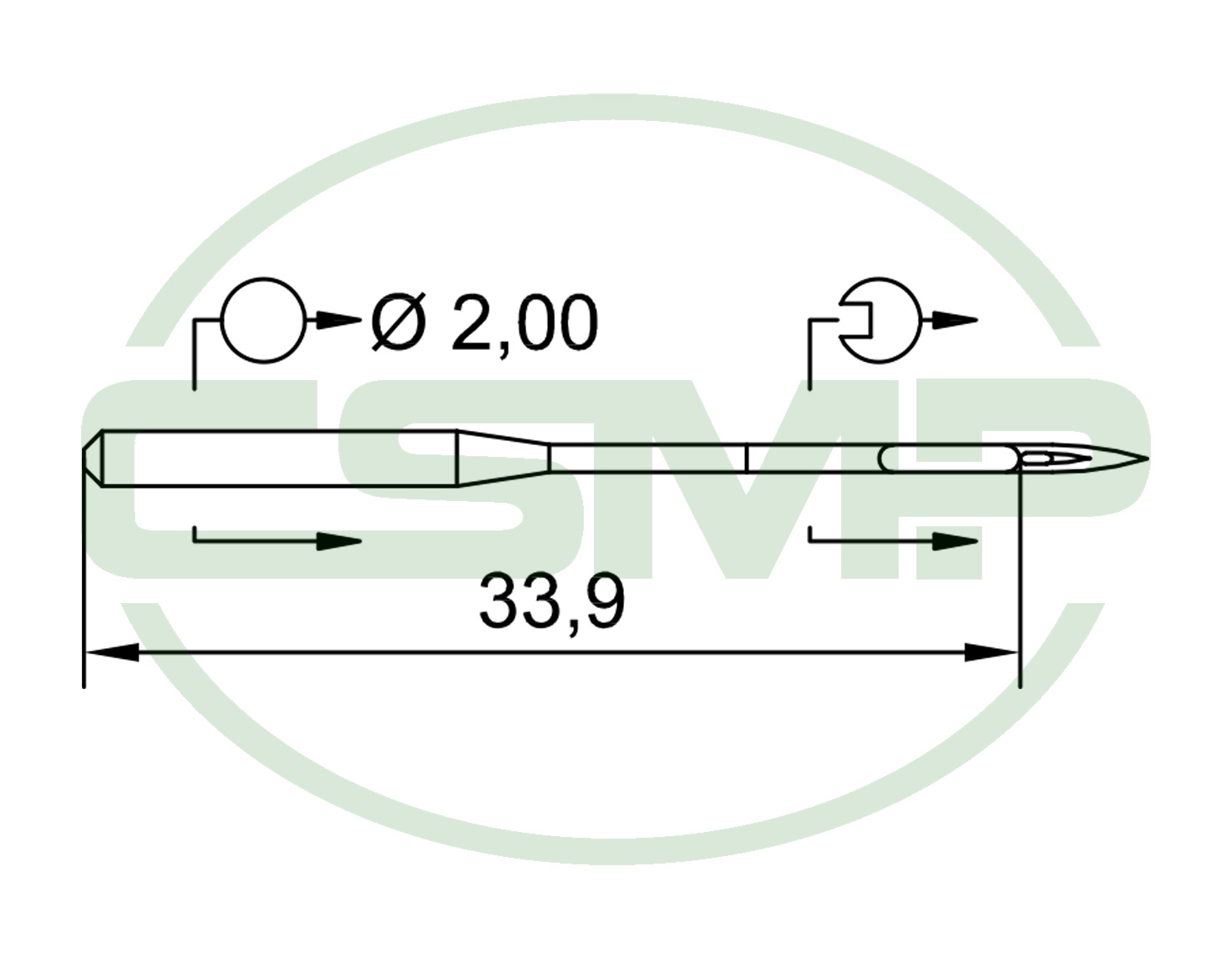

| Shank-ø | 2 mm |
| Overall Length | 38.3 mm |
| Length to Eye | 33.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 134PCRX80 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 80 / Size 12 |
