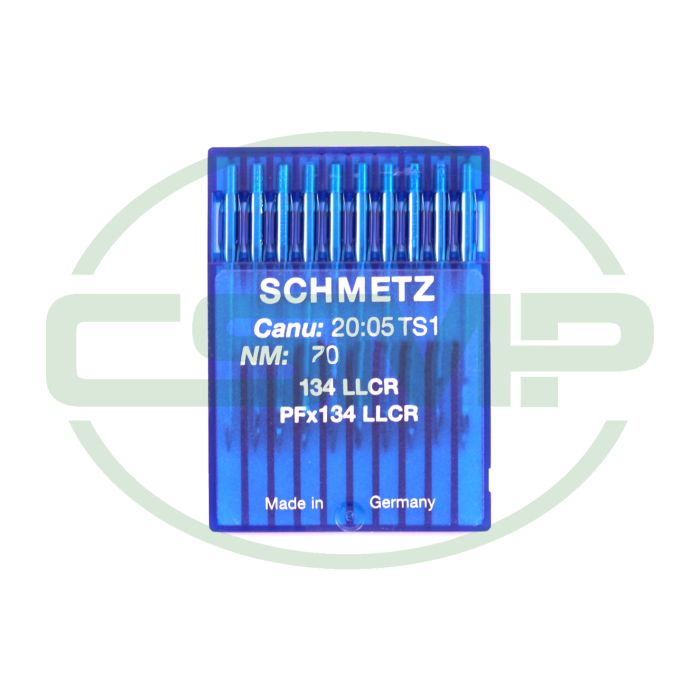

134LLCR SIZE 70 PACK OF 10 NEEDLES SCHMETZ
Description / 134LLCR SIZE 70 PACK OF 10 NEEDLES SCHMETZ
Schmetz 20:05TS1 - 134 LLCR, PFX134 LLCR - NM 70 / Size 10 - LL CR (Twist point with groove on right side) Packet of 10 Needles.
LL CR (Twist point with groove on right side)
When using this point shape, you achieve a lenticular incision with a 135° angle to the seam direction. The result is a slightly recessed, straight seam.

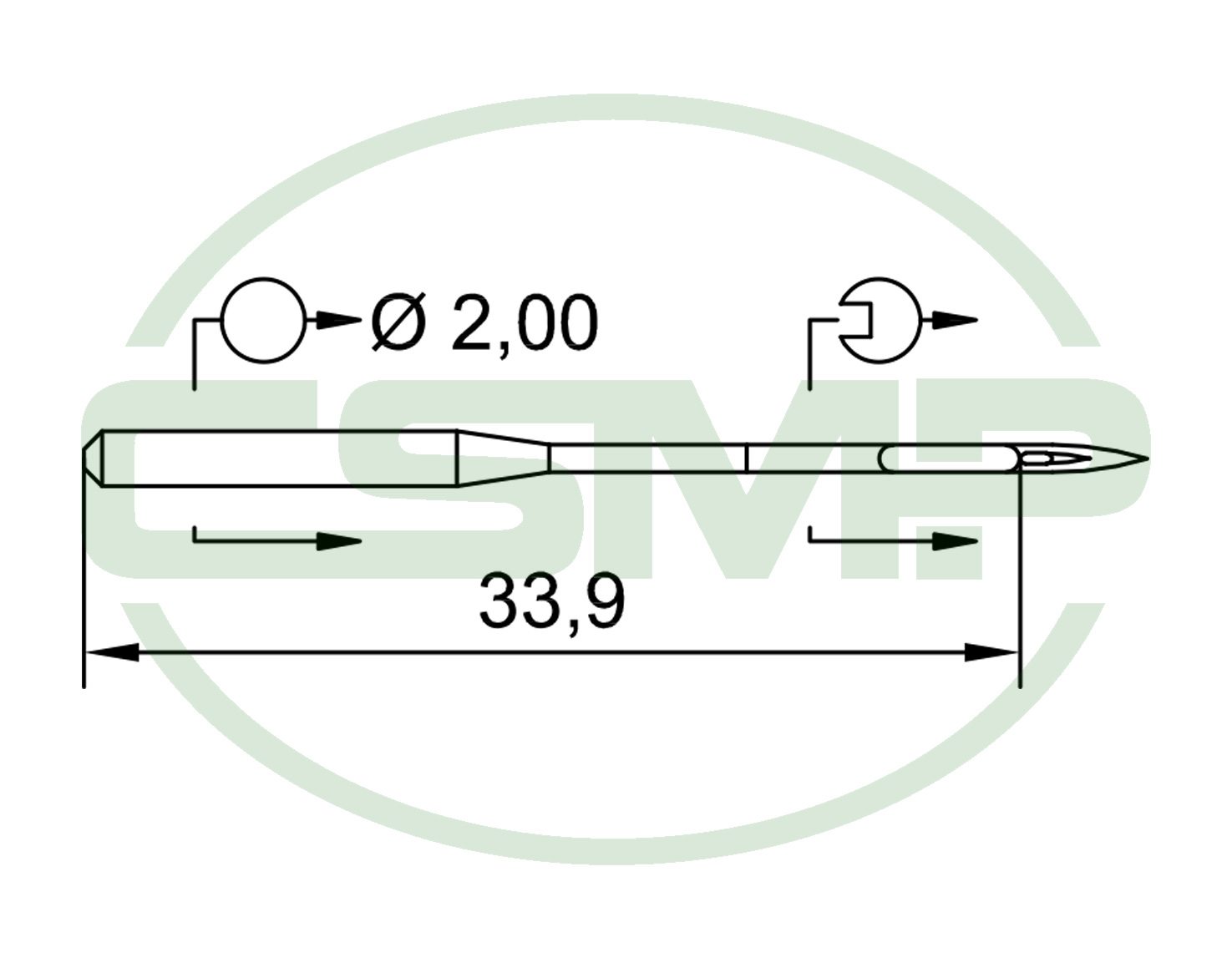

Needle Specification
Customary Needle Designations | 134 LLCR, PFX134 LLCR |
---|---|
CANU | 20:05TS1 |
NM / Size | NM: 70 / Size: 10 |
Point Style | LL CR (Twist point with groove on right side) |
Type of Coating | Chrome |
Shank-ø | 2 mm |
Overall Length | 37.9 mm |
Length to Eye | 33.9 mm |
Shank Flattening | Without shank flattening |
Blade Shape | Straight |
Number of Grooves | 1 |
Stitch Type | Lockstitch |
More Information
Part No | 134LLCRX70 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Schmetz |
Needle Size | NM 70 / Size 10 |
