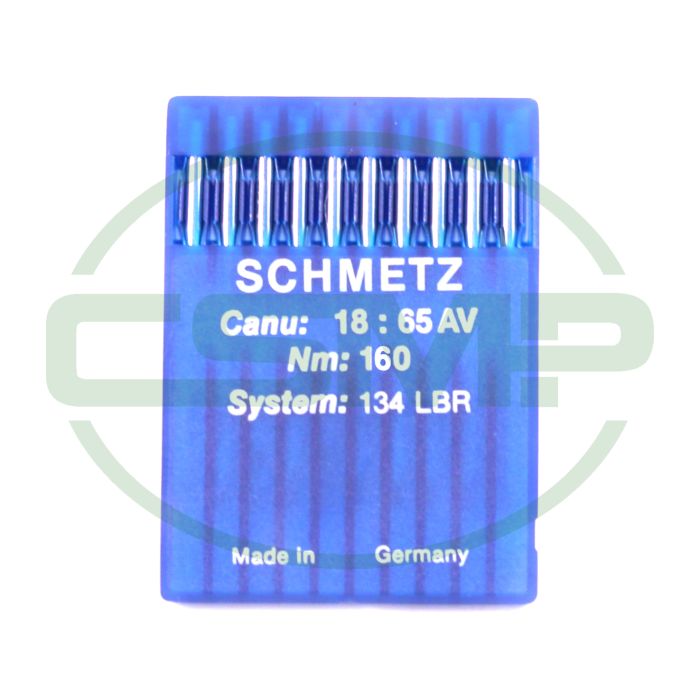

134LBR SIZE 160 PACK OF 10 NEEDLES SCHMETZ
Description / 134LBR SIZE 160 PACK OF 10 NEEDLES SCHMETZ
Schmetz 18:65AV1 - 134 LBR - NM 160 / Size 23 - LBR (Wide reverse twist point) Packet of 10 Needles.
LBR (Wide reverse twist point)
You can use this cutting point if you want to make a lenticular incision at a 45° angle to the seam direction and beyond the diameter of the needle. The result is a raised, decorative seam inclined towards the left.
Needle Specification
Customary Needle Designations | 134 LBR |
---|---|
CANU | 18:65AV1 |
NM / Size | NM: 160 / Size: 23 |
Point Style | LBR (Wide reverse twist point) |
Type of Coating | Chrome |

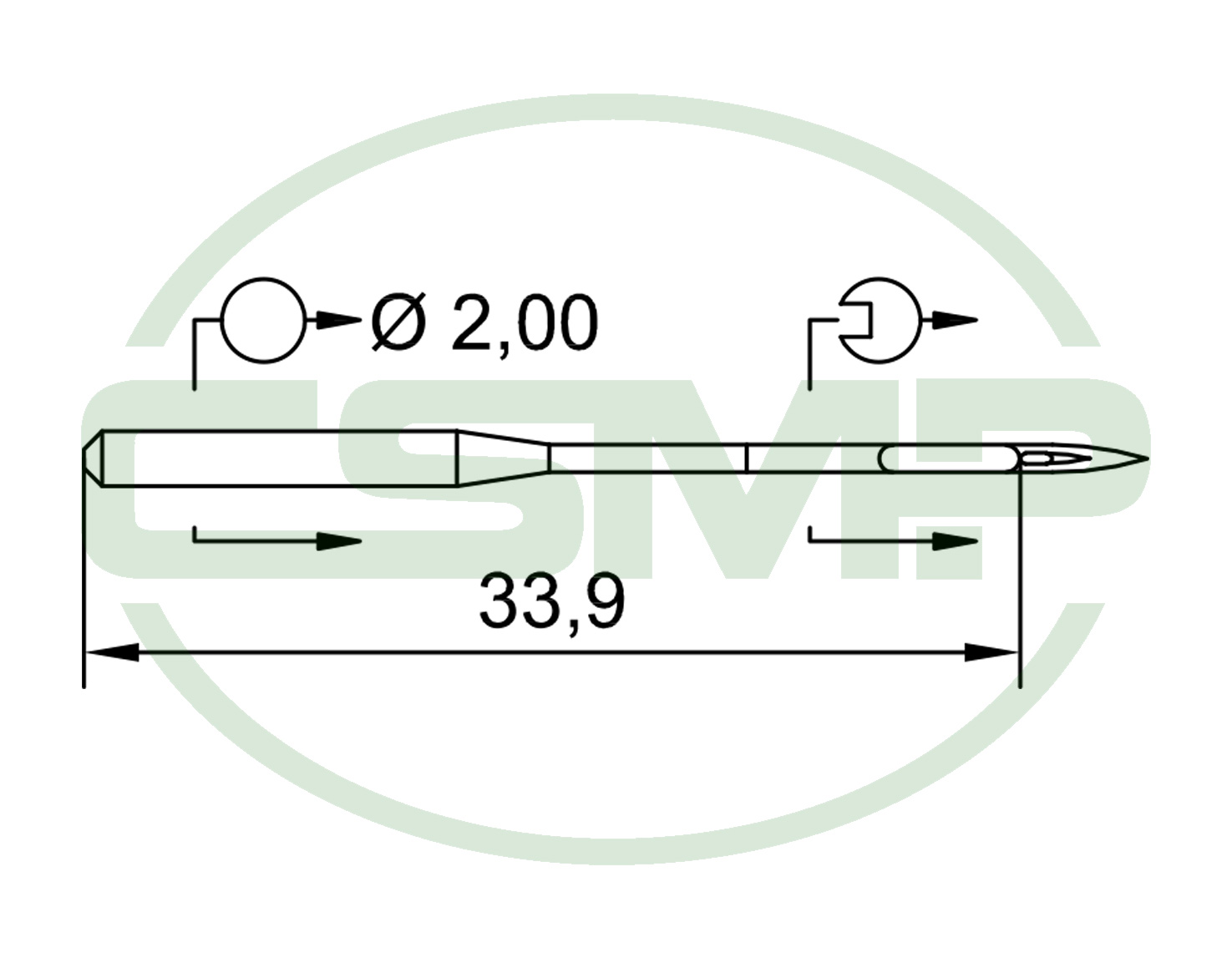

Shank-ø | 2 mm |
Overall Length | 39.7 mm |
Length to Eye | 33.9 mm |
Shank Flattening | Without shank flattening |
Blade Shape | Straight |
Number of Grooves | 1 |
Stitch Type | Lockstitch |
More Information
Part No | 134LBRX160 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Schmetz |
Needle Size | NM 160 / Size 23 |
