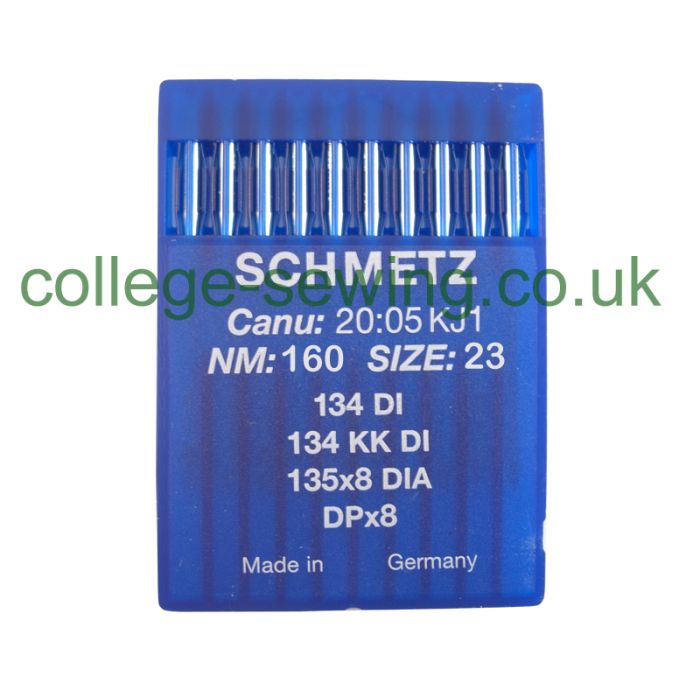

134DI SIZE 160 PACK OF 10 NEEDLES SCHMETZ
Part No
134DIX160
Schmetz 20:05KJ1 - 134 DI, 135X8 DIA, DPX8 - NM 160 / Size 23 - DI (Diamond point) Packet of 10 Needles.
£4.88
Ex. VAT
In Stock
Description / 134DI SIZE 160 PACK OF 10 NEEDLES SCHMETZ
Schmetz 20:05KJ1 - 134 DI, 135X8 DIA, DPX8 - NM 160 / Size 23 - DI (Diamond point) Packet of 10 Needles.
DI (Diamond point)
If you are using the "DI" point, you will obtain a rhombic incision. The centered incision is made in the seam direction. The seam appearance corresponds to that of the narrow cross point "S", however, the four cutting edges of the "DI" point allow easier penetration of heavy, hard materials. The result is a very straight, recessed seam.
Needle Specification
| Customary Needle Designations | 134 DI, 135X8 DIA, DPX8 |
|---|---|
| CANU | 20:05KJ1 |
| NM / Size | NM: 160 / Size: 23 |
| Point Style | DI (Diamond point) |
| Type of Coating | Chrome |
| Shank-ø | 2 mm |
| Overall Length | 38.7 mm |
| Length to Eye | 33.9 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 134DIX160 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 160 / Size 23 |
