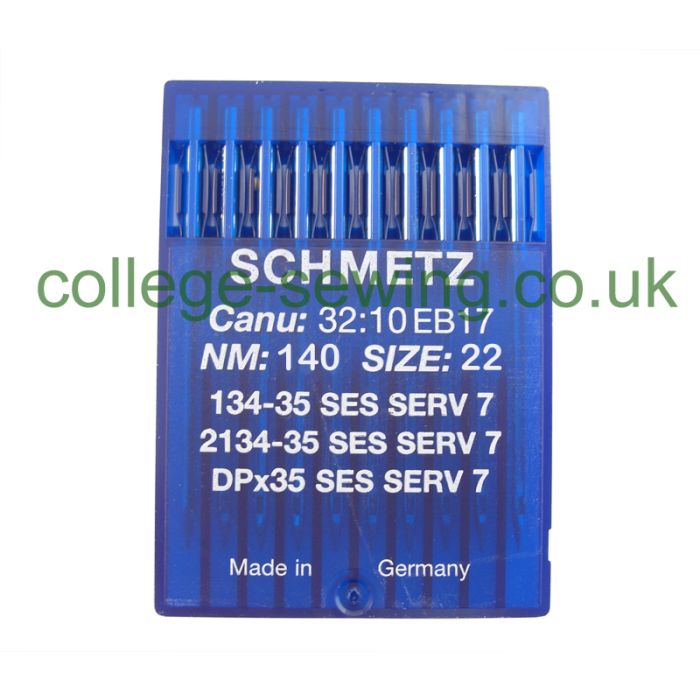

134-35 SES SERV 7 SIZE 140 PACK OF 10 NEEDLES SCHMETZ

Part No 13435SESSERX140
Schmetz 32:10EB17 - 134-35 SES SERV 7, 2134-35 SES SERV 7, DPX35 SES SERV 7 - NM 140 / Size 2 - SES (Light ball point) SERV 7 Packet of 10 Needles.
£4.18
In Stock

Description / 134-35 SES SERV 7 SIZE 140 PACK OF 10 NEEDLES SCHMETZ

Schmetz 32:10EB17 - 134-35 SES SERV 7, 2134-35 SES SERV 7, DPX35 SES SERV 7 - NM 140 / Size 2 - SES (Light ball point) SERV 7 Packet of 10 Needles.

SES (Light ball point)
The light ball point displaces woven and knitted threads, directly piercing the spaces and avoiding damage to the material.

SCHMETZ SERV 7
Besides fabric damage, skip stitches are a problem that frequently arises when sewing elastic material. To prevent them, SCHMETZ developed the SERV 7 needle. This specially shaped needle is made for almost all needle systems, with all the main point shapes and in all current needle sizes.
The main distinguishing features of the SERV 7 design are the hump scarf that makes a particularly large loop of thread which can be more easily caught by the point of the hook and the blade reinforcement, that ensures the extraordinarily high stability of the needle. To produce the smallest possible stitch holes and optimise fabric displacement, the SERV 7 design thus often allows the use of a needle one size smaller without any reduction in the stability of the needle.
SERV 7 needles have a 15 % reinforcement, and as much as 20 % in some needle sizes. Therefore, the needle is especially stable and far less likely to “bend”. Neither the hook or looper nor other machine parts, e.g. the throat plate, are damaged.

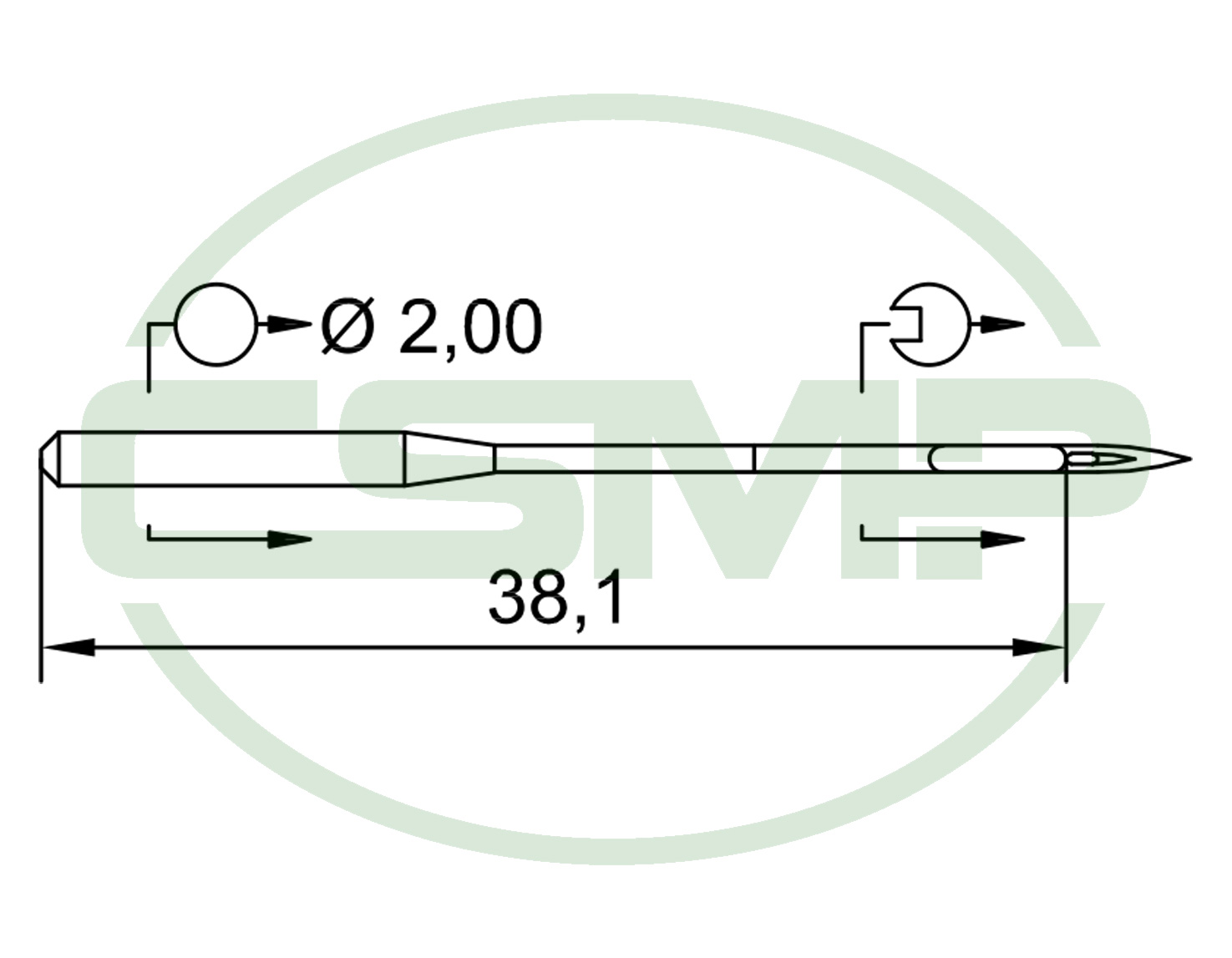

Needle Specification

Customary Needle Designations 134-35 SES SERV 7, 2134-35 SES SERV 7, DPX35 SES SERV 7
CANU 32:10EB17
NM / Size NM: 140 / Size: 22
Point Style SES (Light ball point)
Special Variant Special blade reinforcement and hump scarf, to avoid skipped stitches and reduce needle breakage
Type of Coating Chrome
Shank-ø 2 mm
Overall Length 42.9 mm
Length to Eye 38.1 mm
Shank Flattening Without shank flattening
Blade Shape Straight
Number of Grooves 1
Stitch Type Lockstitch

More Information

Part No 13435SESSERX140
Weight (KG) 0.015000
Manufacturer Schmetz
Needle Size NM 140 / Size 22
