134-35SD1 SIZE 90 PACK OF 10 NEEDLES SCHMETZ
Part No
13435SD1X90
Schmetz 32:10ME1 - 134-35 SD1, 2134-35 SD1, DPX35 SD1 - NM 90 / Size 14 - SD1 (Round point with small triangular tip) Packet of 10 Needles.
£4.82
Ex. VAT
In Stock
Description / 134-35SD1 SIZE 90 PACK OF 10 NEEDLES SCHMETZ
Schmetz 32:10ME1 - 134-35 SD1, 2134-35 SD1, DPX35 SD1 - NM 90 / Size 14 - SD1 (Round point with small triangular tip) Packet of 10 Needles.
SD1 (Round point with small triangular tip)
This round point with a very small triangular incision cuts approx. 10 % of the stitch hole, 90 % is displaced by the conical round point "R". The result is a straight seam and a tidy seam appearance. The incision is smaller than with a cutting point.
Needle Specification
| Customary Needle Designations | 134-35 SD1, 2134-35 SD1, DPX35 SD1 |
|---|---|
| CANU | 32:10ME1 |
| NM / Size | NM: 90 / Size: 14 |
| Point Style | SD1 (Round point with small triangular tip) |
| Type of Coating | Chrome |

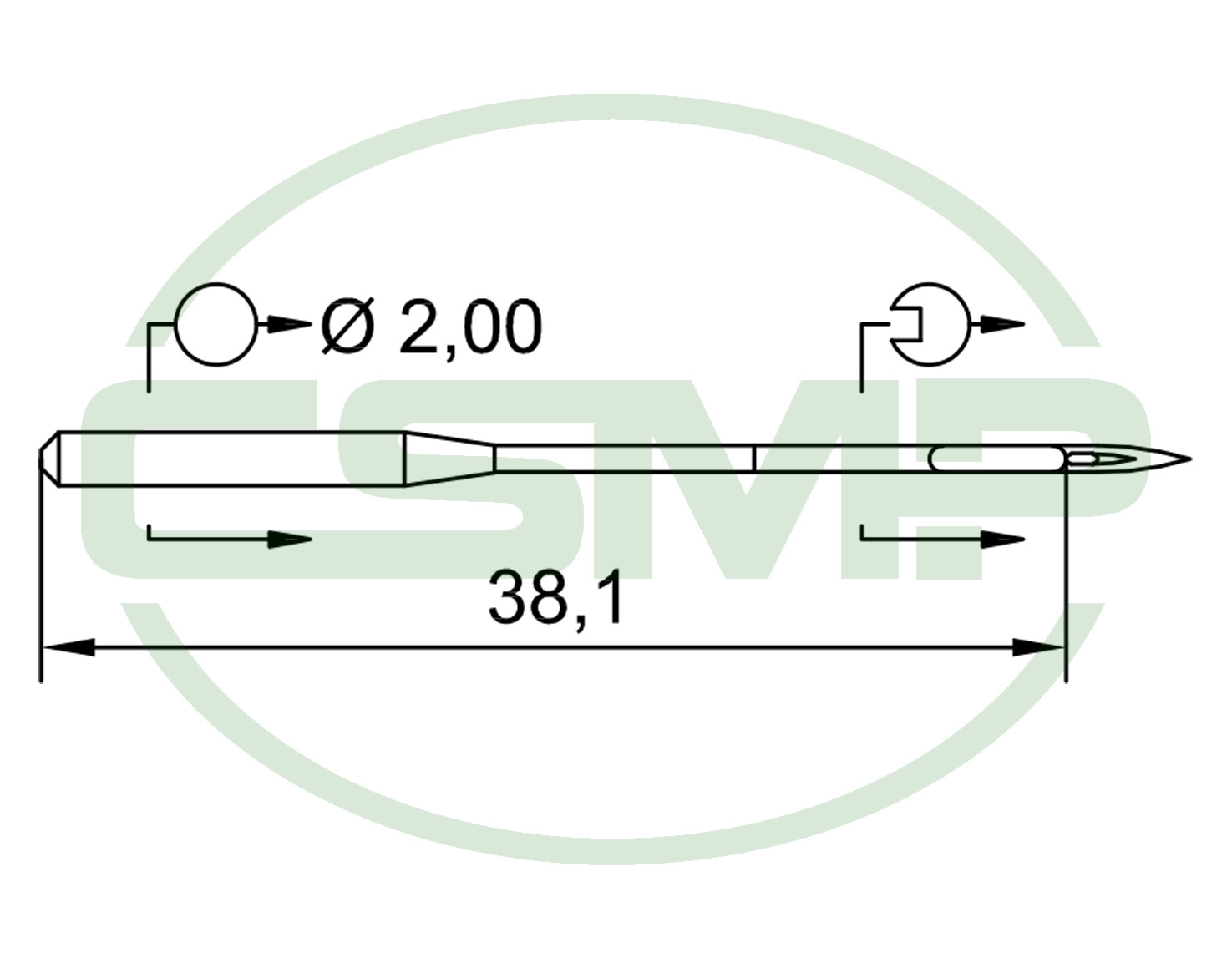

| Shank-ø | 2 mm |
| Overall Length | 42.5 mm |
| Length to Eye | 38.1 mm |
| Shank Flattening | Without shank flattening |
| Blade Shape | Straight |
| Number of Grooves | 1 |
| Stitch Type | Lockstitch |
More Information
| Part No | 13435SD1X90 |
|---|---|
| Weight (KG) | 0.015000 |
| Manufacturer | Schmetz |
| Needle Size | NM 90 / Size 14 |
