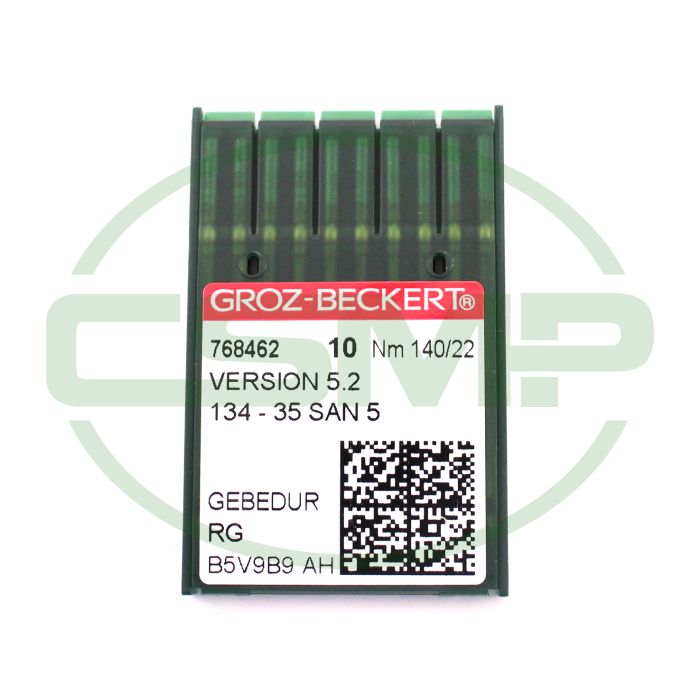

134-35 SAN 5 GEBEDUR SIZE 140 PACK OF 10 NEEDLES
Description / 134-35 SAN 5 GEBEDUR SIZE 140 PACK OF 10 NEEDLES
Groz Beckert - 134-35 SAN 5 GEBEDUR - NM 140 / Size 22 - RG (Normal round point with small ball) GEBEDUR™ Packet of 10 Needles.
RG (Normal round point with small ball)
- Slightly rounded shape of the point
- Suitable for knitted and woven fabrics and microfiber
- Standard point for chainstitch as well as single and multihead embroidery
- Perfectly suited for button sewing
Groz Beckert Coating
GEBEDUR™ needles developed and patented by Groz-Beckert are coated with titanium nitride, which gives them their characteristic golden appearance. This coating provides the needles with a higher degree of hardness than standard needles. Therefore, GEBEDUR™ needles offer a better protection against wear and damage, particularly in the point and eye area. This superior wear resistance results in a consistently high standard of seam quality and a longer service life for needles, which ultimately means improved productivity. This makes for a needle capable of coping with any situation, no matter how extreme the requirements.
SAN™ 5.2 for the processing of technical textiles
The SAN™ 5.2 special application needle is suitable for processing extremely hard materials or material combinations. The reinforced blade increases the stability of the needle and the enlarged eye enables the use of thick sewing threads. The double point groove improves the thread guidance in linear and, above all, multidirectional sewing processes. In addition, the scarf chamfers on both sides ensure an optimum loop pick-up by the hook or looper.
Needle Specification
Customary Needle Designations | VERSION 5.2, 32:10 | |
---|---|---|
Further Point Designations | STU, STUB, S BALL, SET RT, EH, H SET, NEW RD, R STU, R | |
NM / Size | NM: 140 / Size: 22 | |
Type of Coating | GEBEDUR™ | |

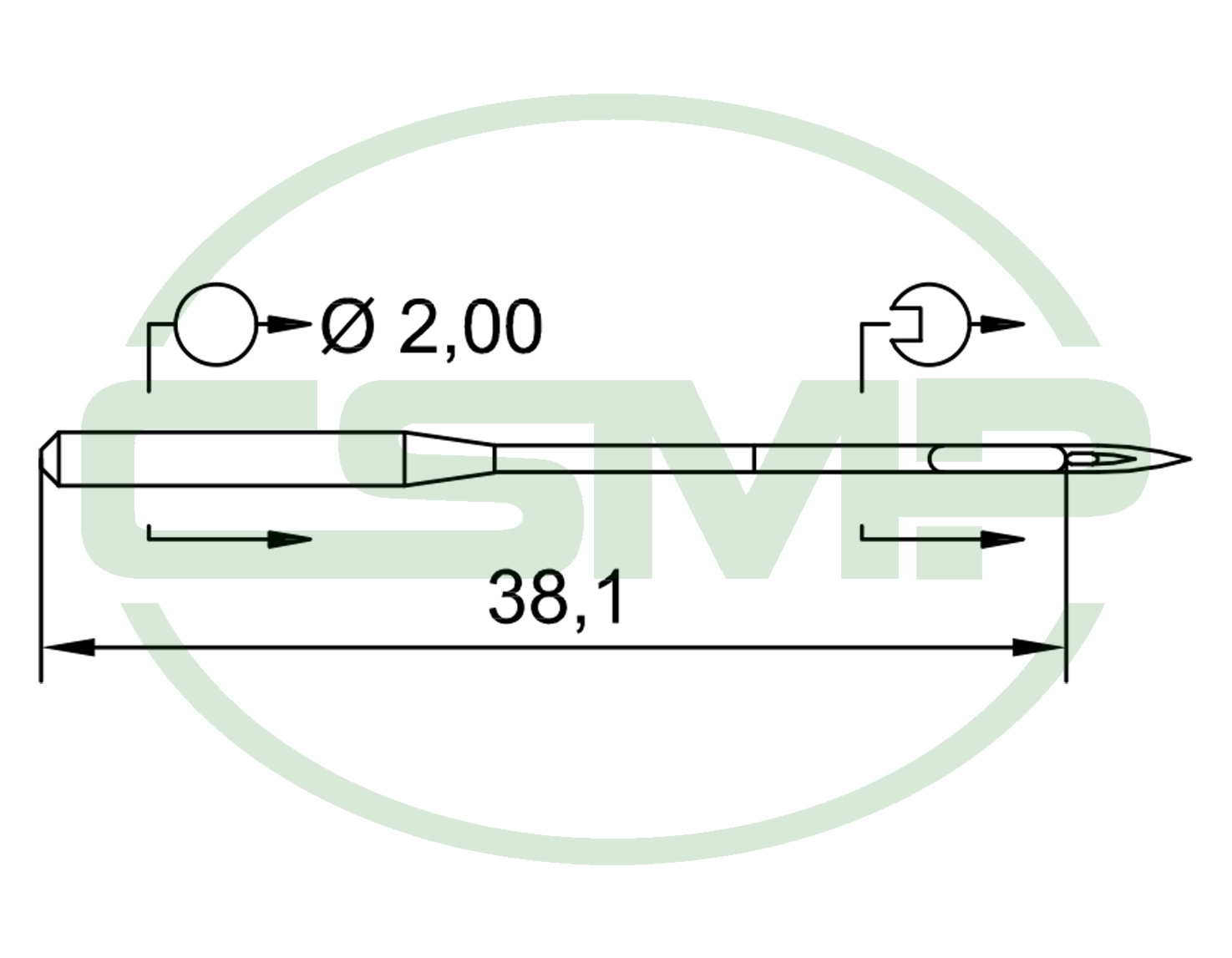

Shank-ø | 2 mm | |
Overall Length | 43.5 mm | |
Length to Eye | 38.1 mm | |
Needle Form Description | Straight needle with single groove and scarf | |
Special application needle | SAN™ 5 for the processing of technical textiles | |
Technical Sewing Application | Double lock stitch | |
Stitch Type Class | 300 | |
Recommended For | Technical textiles, Woven fabrics | |
Examples of Use | Cushions, Airbags, Seat belts, Tents, Canvas covers, Foils, Plastic welts, Nets |
More Information
Part No | 13435SAN5GEX140 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Groz Beckert |
Needle Size | NM 140 / Size 22 |
