134-35CL SIZE 140 PACK OF 10 NEEDLES SCHMETZ
Description / 134-35CL SIZE 140 PACK OF 10 NEEDLES SCHMETZ

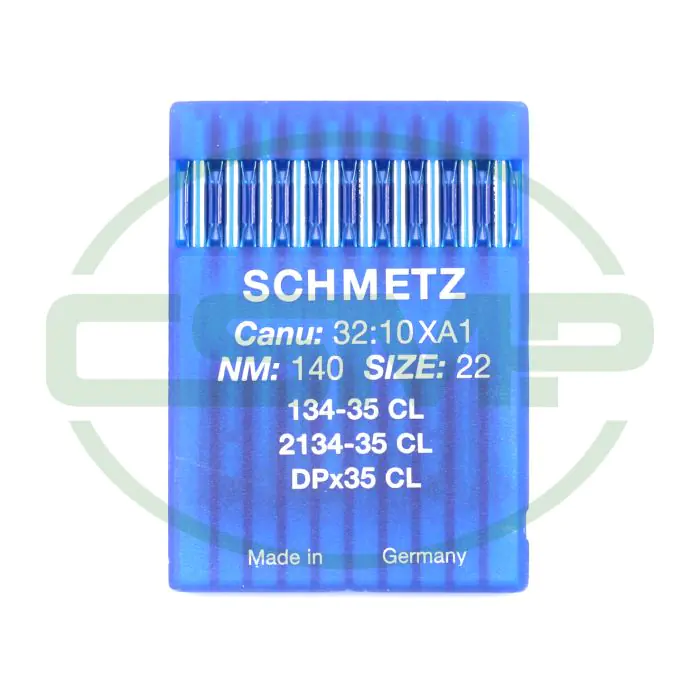

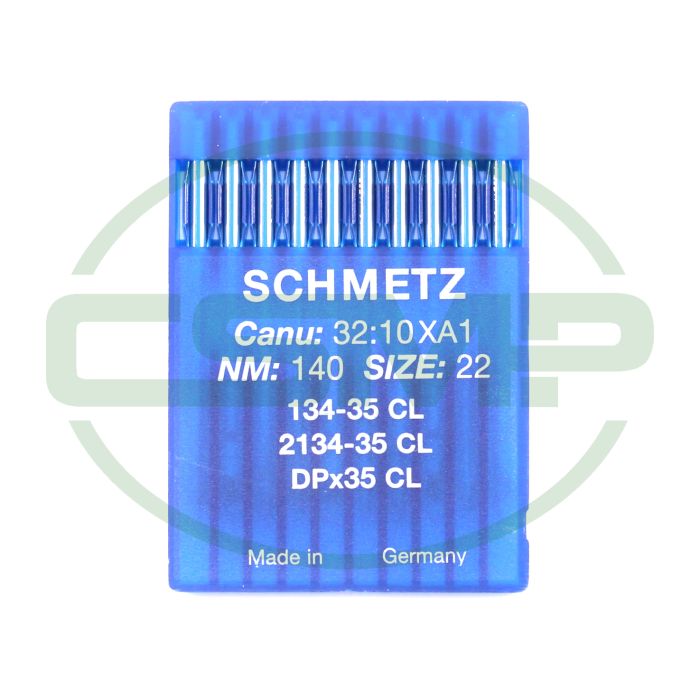

Schmetz 32:10XA1 - 134-35 CL, 2134-35 CL, DPX35 CL - NM 140 / Size 22 - STANDARD (Normal round point) Packet of 10 Needles.
STANDARD (Normal round point)
The normal round point is the standard point form and has a slim, conical shape. No point supplement "R" is mentioned in the system code.
Needle Specification
Customary Needle Designations | 134-35 CL, 2134-35 CL, DPX35 CL |
---|---|
CANU | 32:10XA1 |
NM / Size | NM: 140 / Size: 22 |
Point Style | STANDARD (Normal round point) |
Type of Coating | Chrome |

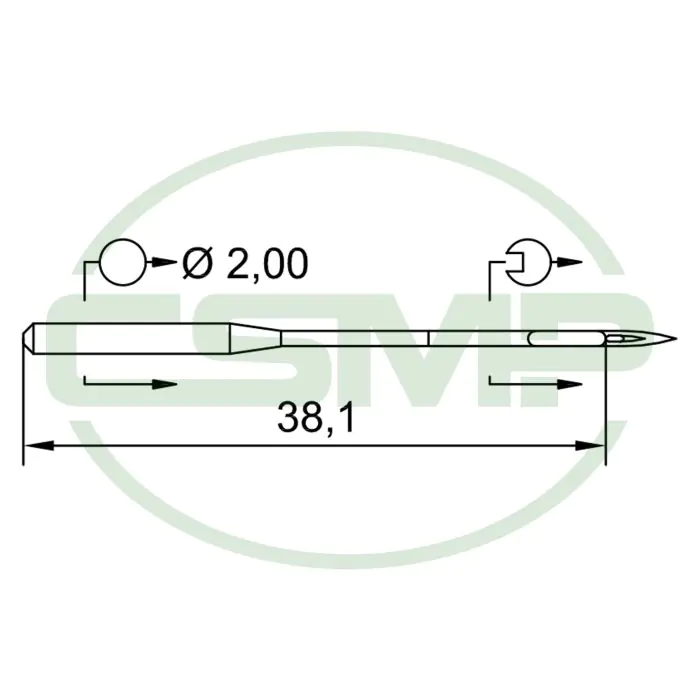

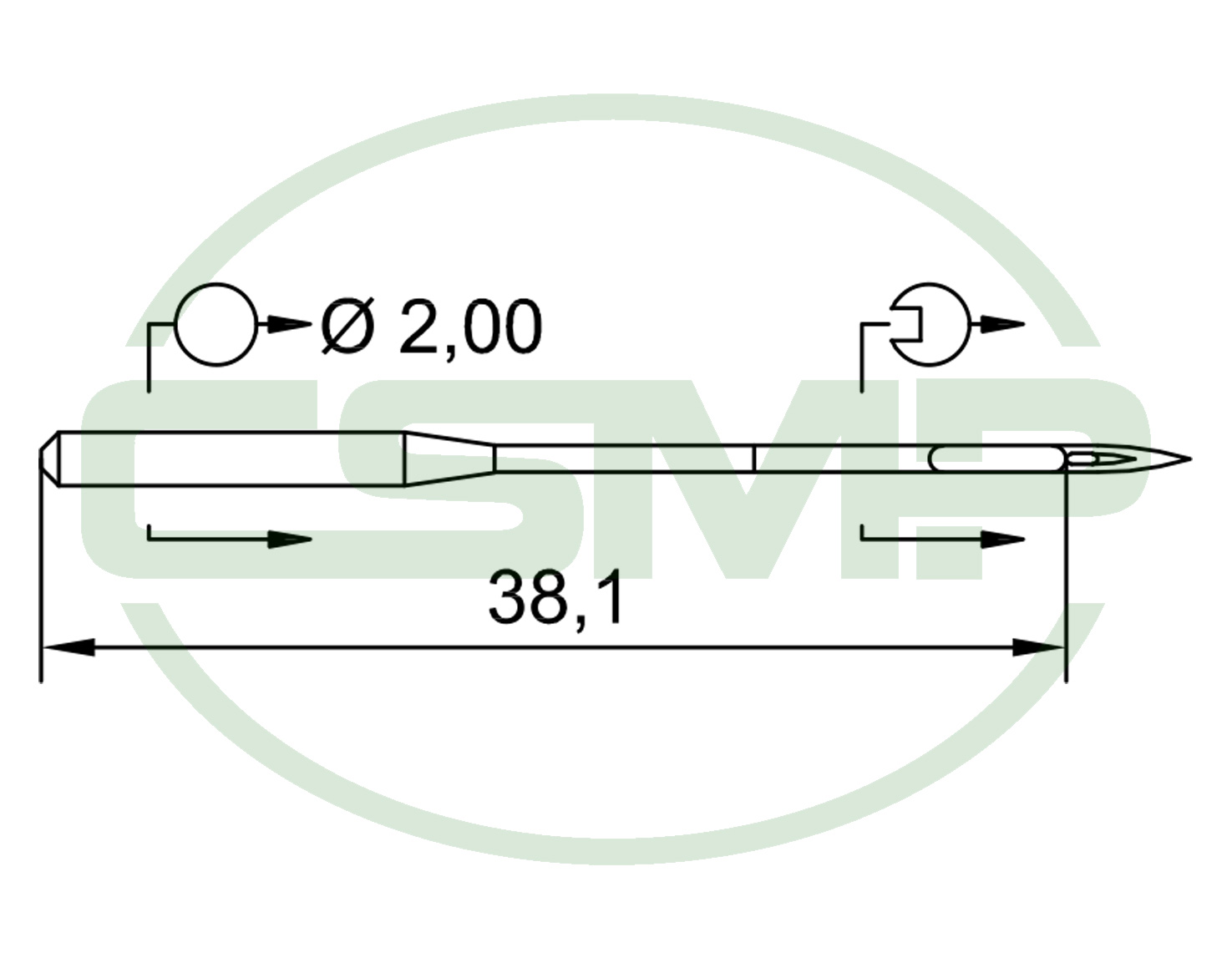

Shank-ø | 2 mm |
Overall Length | 43.1 mm |
Length to Eye | 38.1 mm |
Shank Flattening | Without shank flattening |
Blade Shape | Straight |
Number of Grooves | 1 |
Stitch Type | Lockstitch |
More Information
Part No | 13435CLX140 |
---|---|
Weight (KG) | 0.015000 |
Manufacturer | Schmetz |
Needle Size | NM 140 / Size 22 |
