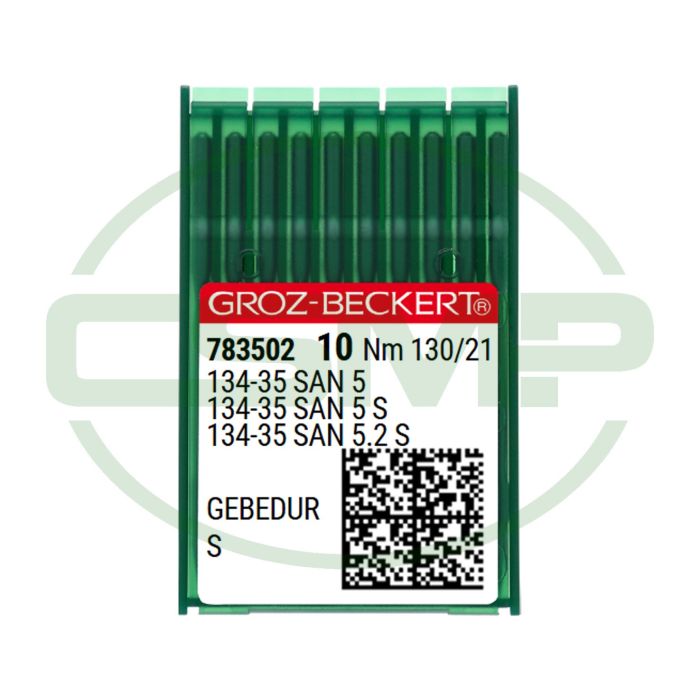

134-35 SAN 5 S GEBEDUR SIZE 130 PACK OF 10 NEEDLES

Part No 13435SAN5SGEBX130
Groz Beckert - 134-35 SAN 5 S GEBEDUR - NM 130 / Size 21 - S (Narrow Cross Point) GEBEDUR™ Packet of 10 Needles.
£6.25
Not In Stock

Description / 134-35 SAN 5 S GEBEDUR SIZE 130 PACK OF 10 NEEDLES

Groz Beckert - 134-35 SAN 5 S GEBEDUR - NM 130 / Size 21 - S (Narrow Cross Point) GEBEDUR™ Packet of 10 Needles.

S (Narrow Cross Point)

  • Cuts the leather in the sewing direction
  • Straight seam
  • Tight stitch formation with corresponding leather and stitch size
  • Stitch holes are elongated and clearly visible in the seam
  • Suitable for medium to large stitches

Groz Beckert Coating
GEBEDUR™ needles developed and patented by Groz-Beckert are coated with titanium nitride, which gives them their characteristic golden appearance. This coating provides the needles with a higher degree of hardness than standard needles. Therefore, GEBEDUR™ needles offer a better protection against wear and damage, particularly in the point and eye area. This superior wear resistance results in a consistently high standard of seam quality and a longer service life for needles, which ultimately means improved productivity. This makes for a needle capable of coping with any situation, no matter how extreme the requirements.

SAN™ 5.2 for the processing of technical textiles
The SAN™ 5.2 special application needle is suitable for processing extremely hard materials or material combinations. The reinforced blade increases the stability of the needle and the enlarged eye enables the use of thick sewing threads. The double point groove improves the thread guidance in linear and, above all, multidirectional sewing processes. In addition, the scarf chamfers on both sides ensure an optimum loop pick-up by the hook or looper.

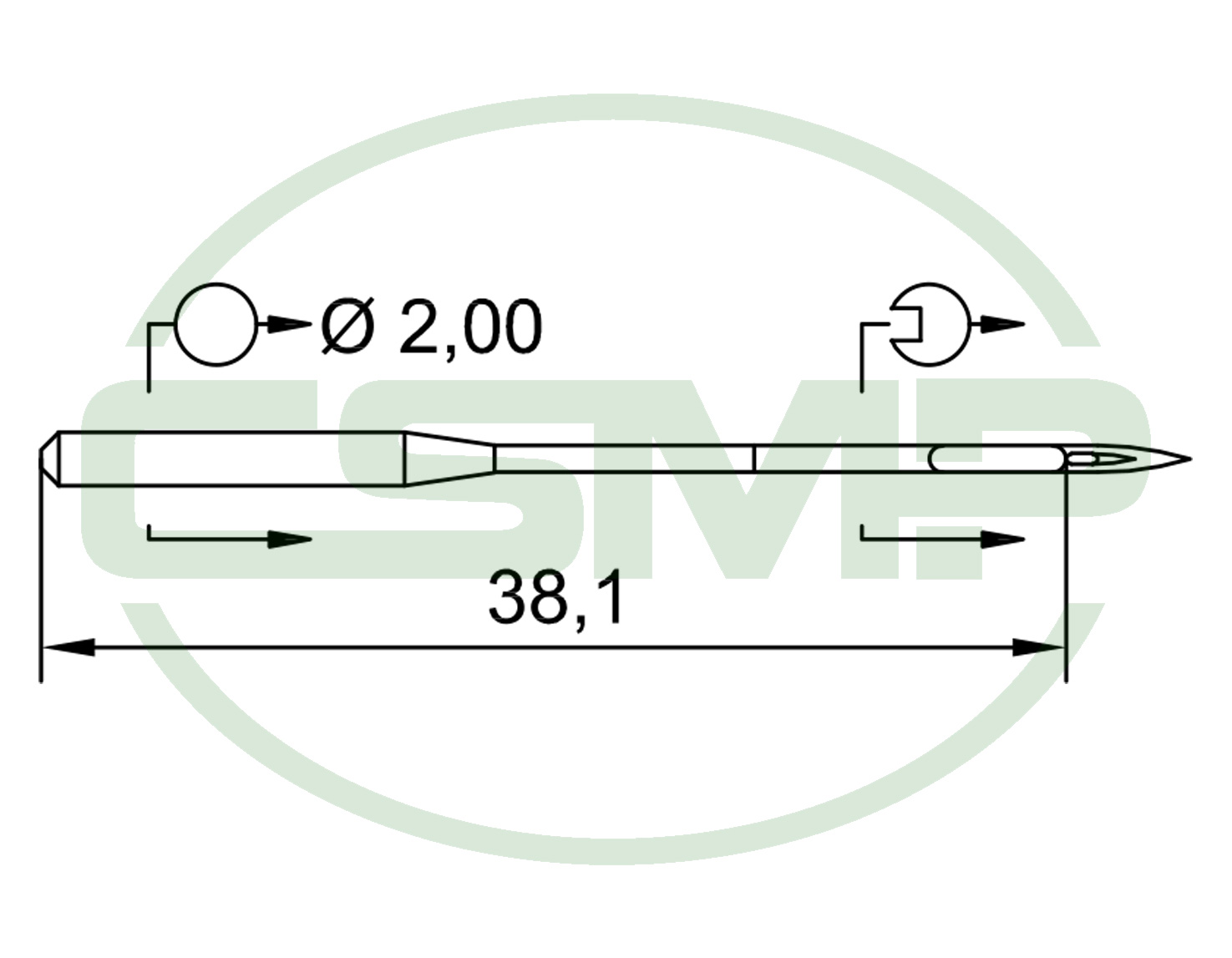

Needle Specification

Customary Needle Designations 134-35 SAN 5 S, 134-35 SAN 5.2 S, 32:10
Further Point Designations CR, RSP, NCR
NM / Size NM: 130 / Size: 21
Type of Coating GEBEDUR™
Shank-ø 2 mm
Overall Length 43.5 mm
Length to Eye 38.1 mm
Needle Form Description Straight needle with single groove and scarf
Special application needle SAN™ 5 for the processing of technical textiles
Technical Sewing Application Double lock stitch
Stitch Type Class 300
Recommended For Leather
Examples of Use Car seats, Cushions

More Information

Part No 13435SAN5SGEBX130
Weight (KG) 0.015000
Manufacturer Groz Beckert
Needle Size NM 130 / Size 21
